Getting Started With Documentation

Documentation is a big part of adding context and ease of use with our project. Therefore, we stress documenting your code, features and everything else within MSL Quad.

Documentation for the Web

We use ReadTheDocs (RTD) to host our documentation. In order to generate the documentation, we use a collection of ReStructureText (RST) files to write the content within the documentation you are reading now.

Note

Make sure you follow our RST style guide whenever writing documentation for the project.

Generation of the actual html is done internally by RTD with every commit. But before you start modifying the documentation and committing it to the repo, it is essential to build the documentation locally to verify how it will compile and look on RTD. We use Sphinx through Python, with extensions for RTD. Below provides a setup for your system to handle the html generation locally.

Local Documentation

First we need to make sure Python is on your system. We suggest using version 3 and avoiding version 2 entirely as it is now end of life. With Python on your system there are two ways we’ll discuss to setup your system. Here we show how to use Virtual Environments in Python, but if you would rather use the system level Python installation, you can go directly to Installing Necessary Tools

Working in a Virtual Environment

In a terminal install virtualenv for Python (virtualenv needs to be on the system level for Python to find it properly, so we need root access.)

sudo pip install virtualenv

Once installed, create a virtual environment and activate it.

virtualenv /path/to/virtual_environments/rtd-env
source /path/to/virtual_environments/rtd-env/bin/activate

Note

If you would like to make this a bit easier to initialize the next time you start your PC, you can add the last command to your .bashrc as an alias.

alias rtd-env='source /path/to/virtual_environments/rtd-env/bin/activate'

Installing Necessary Tools

You should now be in your virtual environment. Let’s install Sphinx and RTD extensions.

pip install sphinx
pip install sphinx-rtd-theme

Note

If using the system level Python, add --user to the pip command above.

Building Local Documentation

We need to build the documentation locally to verify how it will look on the official documentation site. This is pretty straightforward and just takes one line in a terminal and a browser to view the html.

cd /path/to/repo/docs
make html

That’s it!

Now you can view the documentation in a browser by following the path to the generated html. This should be something like file:///path/to/repo/docs/build/html/index.html

Note

If you aren’t seeing the changes you’ve made, it’s generally good to also run make clean before building the documentation. This is generally necessary if working with other levels of the documentation.

Pull Request Documentation

When working on a pull request (PR) for the code, documentation will also be automatically built for the PR. To view the html generated by RTD automatically, go to the PR and click on “Details” to the right of the “docs/readthedocs.org:msl-quad” check under “All checks”. Then check on the “View docs” on the right of the follow page. See examples below.

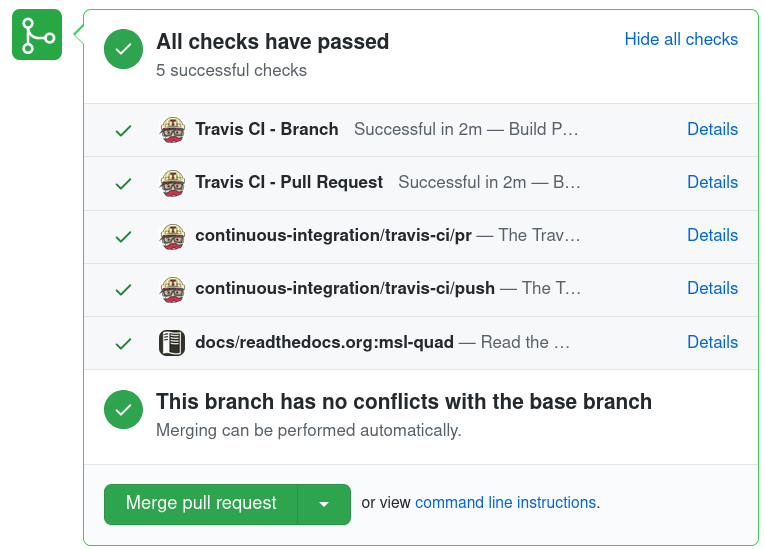

Check at the bottom of a PR:

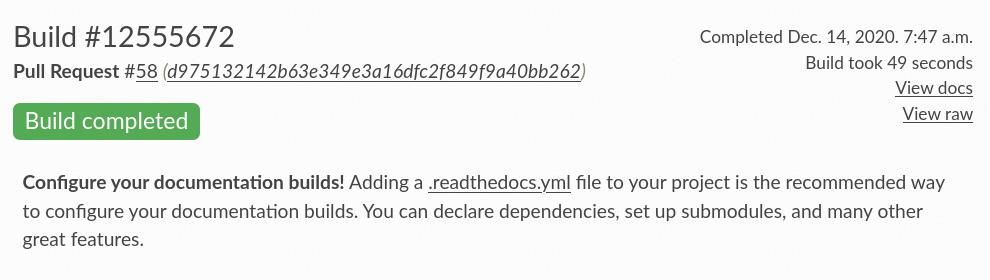

The build section of our ReadTheDocs:
